186 US$ In Stock
Shipping within 4 days

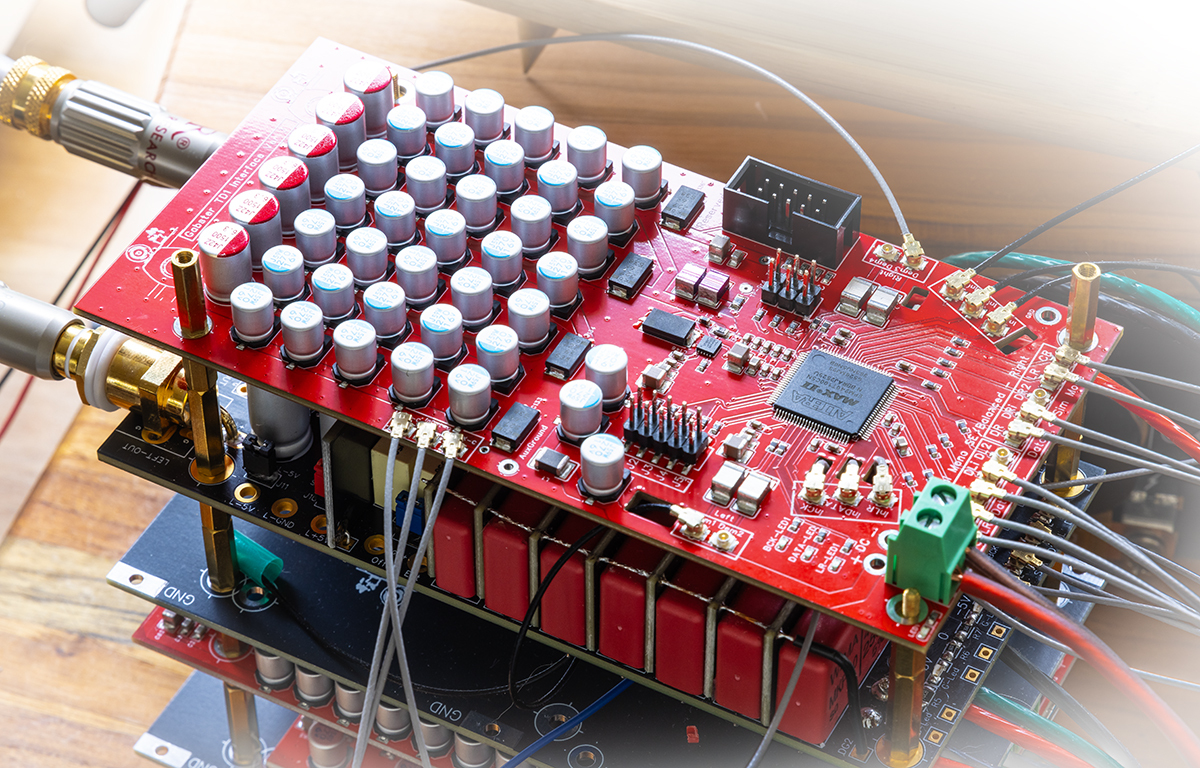

Gabster TD1 TDA1541A Interface What is It?
It is a I²S interface enabling simultaneous mode and DEM reclocking for TDA1541A vintage Dac Chip + switching between 3 different I2s Inputs.
Main Features
Works with most TDA1541A Boards
Isolated I²S A/B/C switch
Advanced DEM Modulator
SIM mode & Balanced mode
Dual Mono Parallel Mode 2x TD1 in Parallel single ended
No Master clock required
Built-in advanced linear regulator
Built-in Gabster CRLC filter with 0.5 μv of ripple
41 Polymer, 7 Film, 27 ceramic Capacitors Total ESR of 200 μOhm
4-layer PCB design with careful attention to grounding
Support for up to 192 KHz
Very Clean Signal with excellent Timing fidelity that you can hear
All 23 UFLs are pre Installed
4 Layer Board with attention to Ground layout
Click on the Youtube Video for details.
Gabster Interface Manual V3
